Artificial Neural Network(ANN)-Softmax Activation

Softmax Activation

출력층에서 다중 분류 수행

• softmax( ) 함수의 출력값 범위 : 0 ~ 1(확률값)

sigmoid( ) vs. softmax( )

• sigmoid( ) : 함수의 출력값이 각각 0 ~ 1 사이의 값을 가짐
• softmax( ) : 전체 출력값의 합이 1이 되어야하기 때문에 학습효과가 증가

---

1. sigmoid( ) & softmax( ) 정의

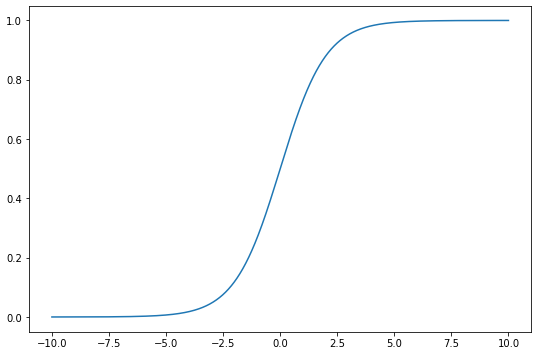

# sigmoid( )

import numpy as np

def sigmoid(x):
    y_hat = 1 / (1 + np.exp(-x))
    return y_hat

import matplotlib.pyplot as plt

n = np.linspace(-10.0, 10.0, 2000)

plt.figure(figsize = (9, 6))
plt.plot(n, sigmoid(n))
plt.show()

# softmax( )

def softmax(x):
    m = np.max(x)
    sm = np.exp(x - m)/np.sum(np.exp(x - m))
    return sm

import matplotlib.pyplot as plt

n = np.linspace(-10.0, 10.0, 2000)

plt.figure(figsize = (9, 6))
plt.plot(n, softmax(n))
plt.show()

---

2. sigmoid( ) vs. softmax( ) 결과 비교

y_hat = np.array([5, 0, -3])

#Sigmoid Activation 적용

np.set_printoptions(suppress = True, precision = 5)

print(sigmoid(y_hat))
print('%.5f' % np.sum(sigmoid(y_hat)))

[0.99331 0.5 0.04743]

1.54073

#Softmax Activation 적용

np.set_printoptions(suppress = True)

print(softmax(y_hat))
print('%.5f' % np.sum(softmax(y_hat)))

[0.99298 0.00669 0.00033]

1.00000

---

3.추가 학습 진행 후 변화 비교

y_hat = np.array([10, -2, -9])

#Sigmoid Activation 재적용

print(sigmoid(y_hat))
print('%.5f' % np.sum(sigmoid(y_hat)))

[0.99995 0.1192 0.00012]

1.11928

#Softmax Activation 재적용

print(softmax(y_hat))
print('%.5f' % np.sum(softmax(y_hat)))

[0.99999 0.00001 0. ]

1.00000
